Peirce’s 1870 “Logic of Relatives” • Comment 9.5

Peirce’s 1870 “Logic of Relatives”Comment 9.5

Peirce’s comma operation, in its application to an absolute term, is tantamount to the representation of that term’s denotation as an idempotent transformation, which is commonly represented as a diagonal matrix.  Hence the alternate name, diagonal extension.

An idempotent element x is given by the abstract condition that xx = x but elements like those are commonly encountered in more concrete circumstances, acting as operators or transformations on other sets or spaces, and in that action they will often be represented as matrices of coefficients.

Let’s see how this looks in the matrix and graph pictures of absolute and relative terms.

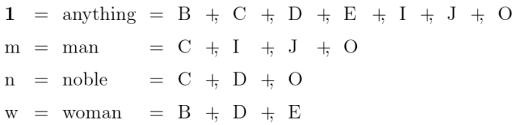

Absolute Terms

Absolute Terms 1 M N W

Previously, we represented absolute terms as column arrays.  The above four terms are given by the columns of the following Table.

Column Arrays

Column Arrays

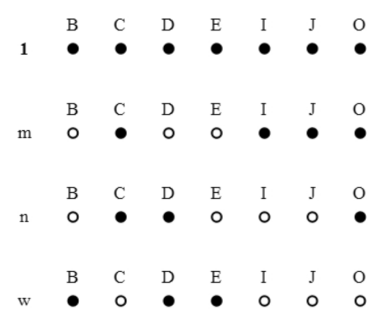

The types of graphs known as bigraphs or bipartite graphs can be used to picture simple relative terms, dyadic relations, and their corresponding logical matrices.  One way to bring absolute terms and their corresponding sets of individuals into the bigraph picture is to mark the nodes in some way, for example, hollow nodes for non‑members and filled nodes for members of the indicated set, as shown below.

Dichromatic Nodes

Dichromatic Nodes 1 M N W

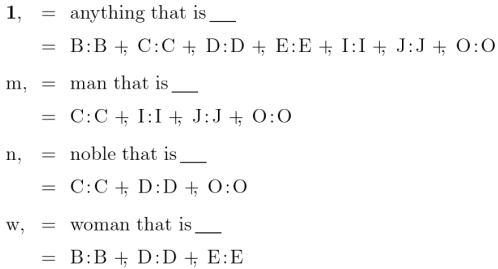

The diagonal extensions of our absolute terms are expressed by the following formulas.

Diagonal Extensions

Diagonal Extensions 1 M N W

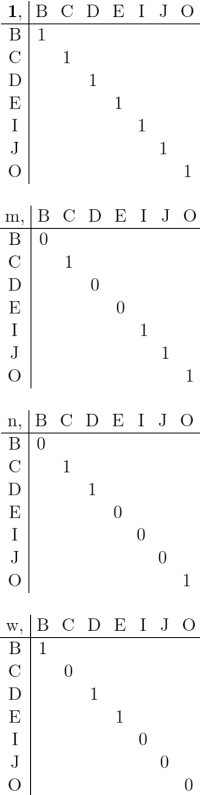

Naturally enough, the diagonal extensions are represented by diagonal matrices.

Diagonal Matrices

Diagonal Matrices 1 M N W

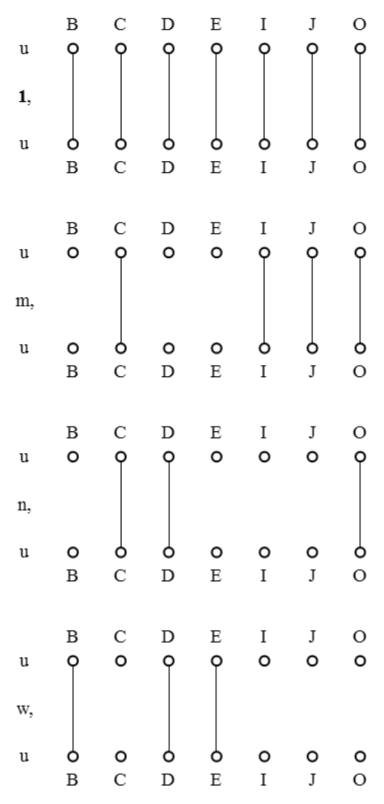

Cast into the bigraph picture of dyadic relations, the diagonal extension of an absolute term takes on a very distinctive sort of “straight-laced” character, as shown below.

Idempotent Bigraphs

Idempotent Bigraphs 1 M N W
