Peirce’s 1870 “Logic of Relatives” • Comment 9.5

PNG

Absolute Terms

Absolute Terms 1 M N W

Column Arrays • Large

Column Arrays 1 M N W Large

Column Arrays • Small

Column Arrays 1 M N W Small

Dichromatic Nodes • Combined

Dichromatic Nodes 1 M N W

Dichromatic Nodes • Separate

LOR 1870 Figure 4.1

LOR 1870 Figure 4.2

LOR 1870 Figure 4.3

LOR 1870 Figure 4.4

Diagonal Extensions

Diagonal Extensions 1 M N W

Diagonal Matrices • Combined

Diagonal Matrices 1 M N W

Diagonal Matrices • Separate

Idempotent Bigraphs • Combined

Idempotent Bigraphs 1 M N W

Idempotent Bigraphs • Separate

LOR 1870 Figure 5.1

LOR 1870 Figure 5.2

LOR 1870 Figure 5.3

LOR 1870 Figure 5.4

HTML + JPG + LaTeX

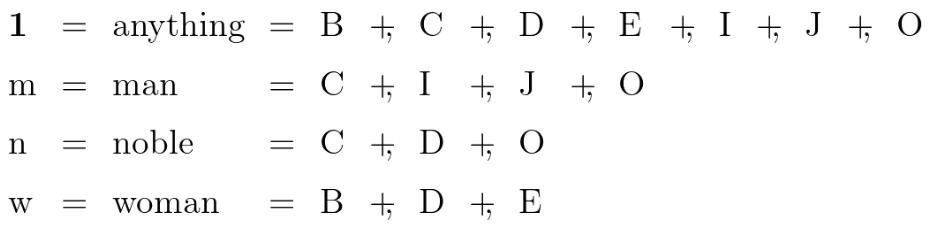

Absolute Terms

\begin{array}{*{17}{l}} \mathbf{1} & = & \text{anything} & = & \mathrm{B} & +\!\!, & \mathrm{C} & +\!\!, & \mathrm{D} & +\!\!, & \mathrm{E} & +\!\!, & \mathrm{I} & +\!\!, & \mathrm{J} & +\!\!, & \mathrm{O} \\[6pt] \mathrm{m} & = & \text{man} & = & \mathrm{C} & +\!\!, & \mathrm{I} & +\!\!, & \mathrm{J} & +\!\!, & \mathrm{O} \\[6pt] \mathrm{n} & = & \text{noble} & = & \mathrm{C} & +\!\!, & \mathrm{D} & +\!\!, & \mathrm{O} \\[6pt] \mathrm{w} & = & \text{woman} & = & \mathrm{B} & +\!\!, & \mathrm{D} & +\!\!, & \mathrm{E} \end{array}

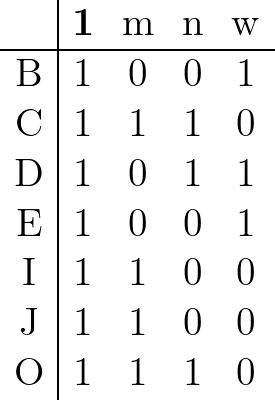

Column Arrays

\begin{array}{c|cccc} & \mathbf{1} & \mathrm{m} & \mathrm{n} & \mathrm{w} \\ \hline \mathrm{B} & 1 & 0 & 0 & 1 \\ \mathrm{C} & 1 & 1 & 1 & 0 \\ \mathrm{D} & 1 & 0 & 1 & 1 \\ \mathrm{E} & 1 & 0 & 0 & 1 \\ \mathrm{I} & 1 & 1 & 0 & 0 \\ \mathrm{J} & 1 & 1 & 0 & 0 \\ \mathrm{O} & 1 & 1 & 1 & 0 \end{array}

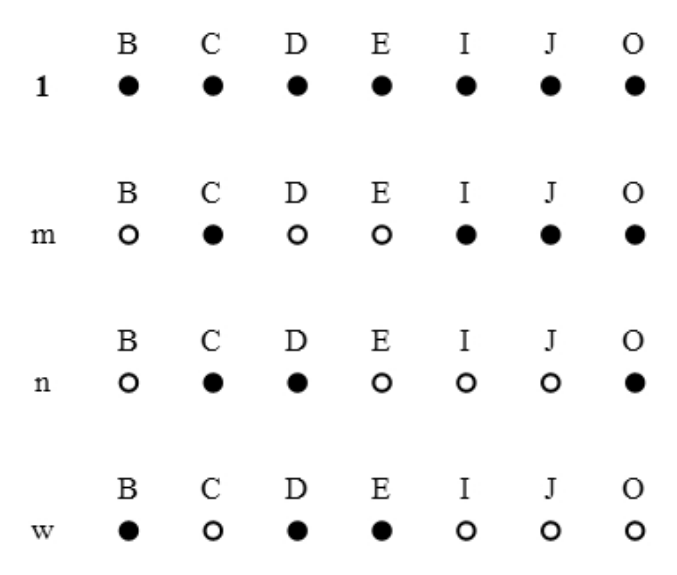

Dichromatic Nodes


LOR 1870 Figure 4.1		 (4.1)

LOR 1870 Figure 4.2		 (4.2)

LOR 1870 Figure 4.3		 (4.3)

LOR 1870 Figure 4.4		 (4.4)

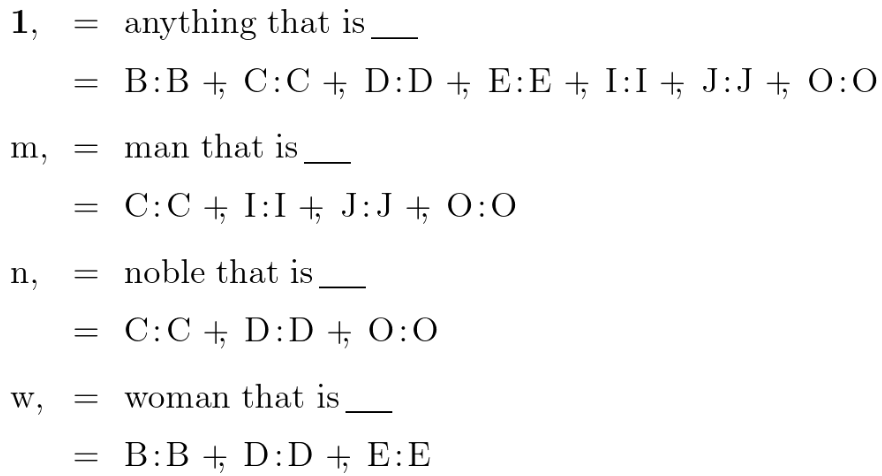

Diagonal Extensions

\begin{array}{lll} \mathbf{1,} & = & \text{anything that is}\, \underline{~~~~} \\[6pt] & = & \mathrm{B\!:\!B} ~+\!\!,~ \mathrm{C\!:\!C} ~+\!\!,~ \mathrm{D\!:\!D} ~+\!\!,~ \mathrm{E\!:\!E} ~+\!\!,~ \mathrm{I\!:\!I} ~+\!\!,~ \mathrm{J\!:\!J} ~+\!\!,~ \mathrm{O\!:\!O} \\[9pt] \mathrm{m,} & = & \text{man that is}\, \underline{~~~~} \\[6pt] & = & \mathrm{C\!:\!C} ~+\!\!,~ \mathrm{I\!:\!I} ~+\!\!,~ \mathrm{J\!:\!J} ~+\!\!,~ \mathrm{O\!:\!O} \\[9pt] \mathrm{n,} & = & \text{noble that is}\, \underline{~~~~} \\[6pt] & = & \mathrm{C\!:\!C} ~+\!\!,~ \mathrm{D\!:\!D} ~+\!\!,~ \mathrm{O\!:\!O} \\[9pt] \mathrm{w,} & = & \text{woman that is}\, \underline{~~~~} \\[6pt] & = & \mathrm{B\!:\!B} ~+\!\!,~ \mathrm{D\!:\!D} ~+\!\!,~ \mathrm{E\!:\!E} \end{array}

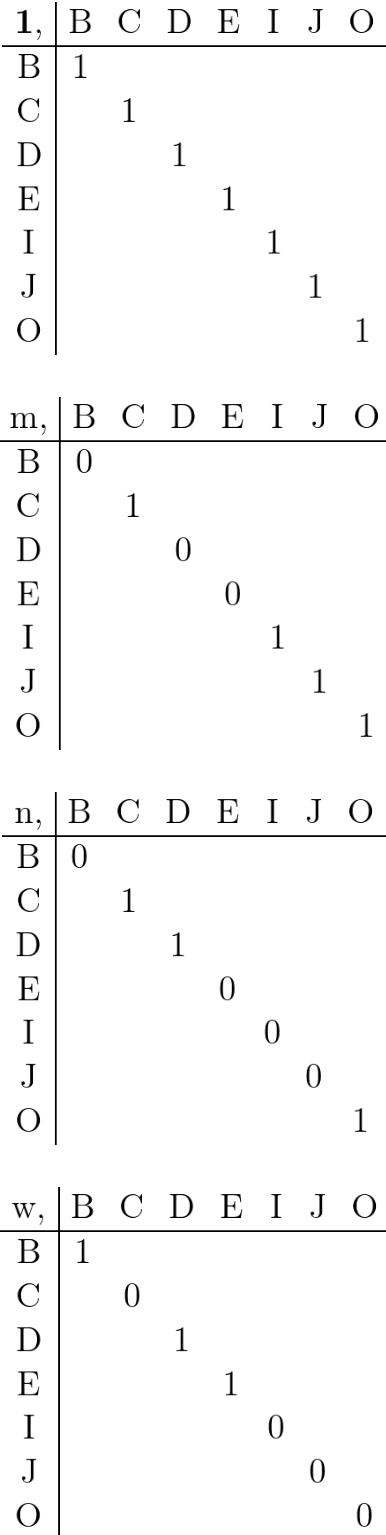

Diagonal Matrices

\begin{array}{c|*{7}{c}} \mathbf{1,} & \mathrm{B} & \mathrm{C} & \mathrm{D} & \mathrm{E} & \mathrm{I} & \mathrm{J} & \mathrm{O} \\ \hline \mathrm{B} & 1 & & & & & & \\ \mathrm{C} & & 1 & & & & & \\ \mathrm{D} & & & 1 & & & & \\ \mathrm{E} & & & & 1 & & & \\ \mathrm{I} & & & & & 1 & & \\ \mathrm{J} & & & & & & 1 & \\ \mathrm{O} & & & & & & & 1 \end{array}

\begin{array}{c|*{7}{c}} \mathrm{m,} & \mathrm{B} & \mathrm{C} & \mathrm{D} & \mathrm{E} & \mathrm{I} & \mathrm{J} & \mathrm{O} \\ \hline \mathrm{B} & 0 & & & & & & \\ \mathrm{C} & & 1 & & & & & \\ \mathrm{D} & & & 0 & & & & \\ \mathrm{E} & & & & 0 & & & \\ \mathrm{I} & & & & & 1 & & \\ \mathrm{J} & & & & & & 1 & \\ \mathrm{O} & & & & & & & 1 \end{array}

\begin{array}{c|*{7}{c}} \mathrm{n,} & \mathrm{B} & \mathrm{C} & \mathrm{D} & \mathrm{E} & \mathrm{I} & \mathrm{J} & \mathrm{O} \\ \hline \mathrm{B} & 0 & & & & & & \\ \mathrm{C} & & 1 & & & & & \\ \mathrm{D} & & & 1 & & & & \\ \mathrm{E} & & & & 0 & & & \\ \mathrm{I} & & & & & 0 & & \\ \mathrm{J} & & & & & & 0 & \\ \mathrm{O} & & & & & & & 1 \end{array}

\begin{array}{c|*{7}{c}} \mathrm{w,} & \mathrm{B} & \mathrm{C} & \mathrm{D} & \mathrm{E} & \mathrm{I} & \mathrm{J} & \mathrm{O} \\ \hline \mathrm{B} & 1 & & & & & & \\ \mathrm{C} & & 0 & & & & & \\ \mathrm{D} & & & 1 & & & & \\ \mathrm{E} & & & & 1 & & & \\ \mathrm{I} & & & & & 0 & & \\ \mathrm{J} & & & & & & 0 & \\ \mathrm{O} & & & & & & & 0 \end{array}

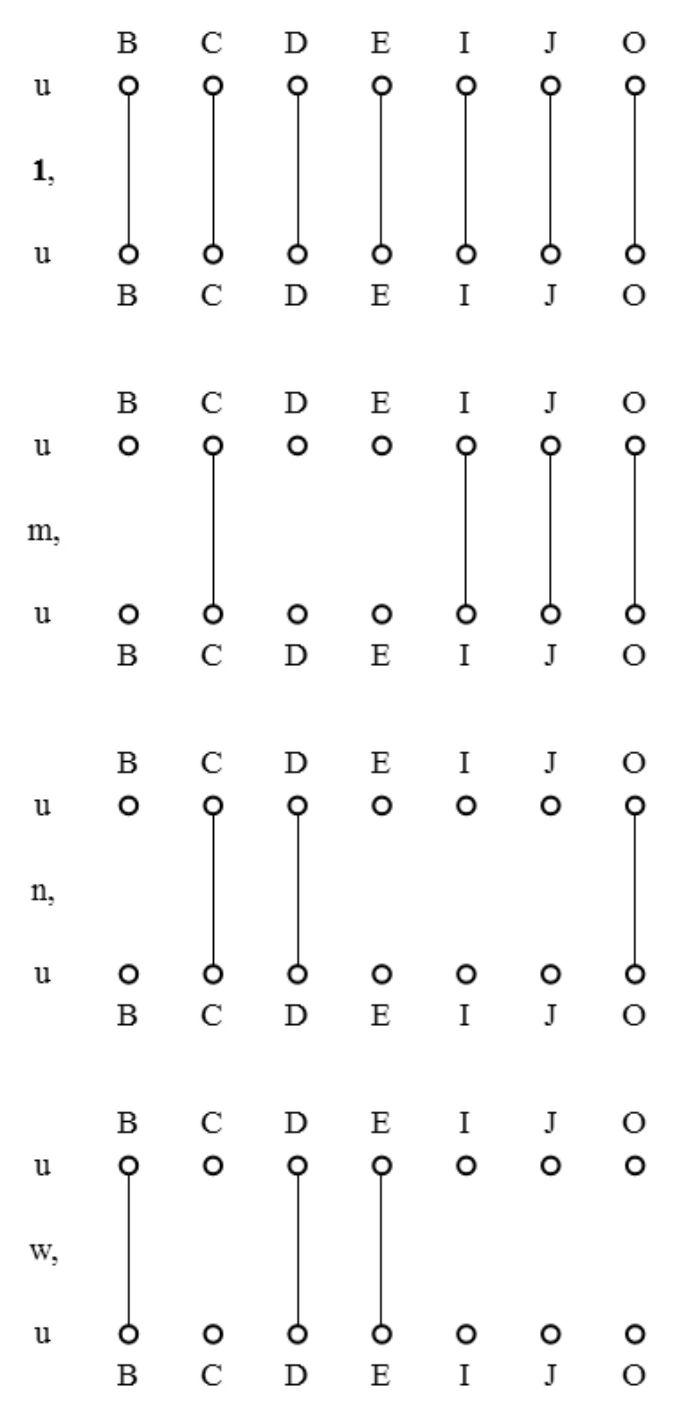

Idempotent Bigraphs

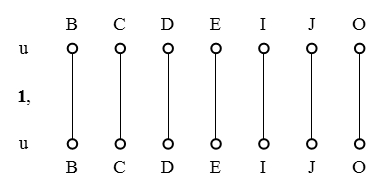

LOR 1870 Figure 5.1		 (5.1)

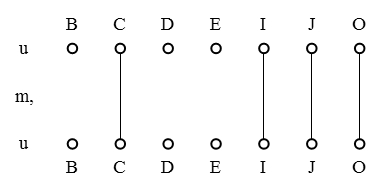

LOR 1870 Figure 5.2		 (5.2)

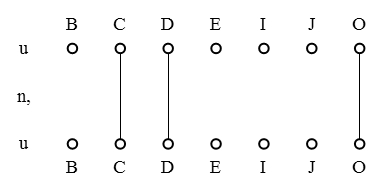

LOR 1870 Figure 5.3		 (5.3)

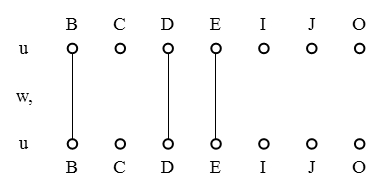

LOR 1870 Figure 5.4		 (5.4)
