Work ䷫

Theme One Program • Exposition 7

JPG

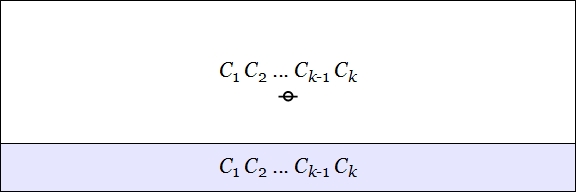

Node Connective

Node Connective

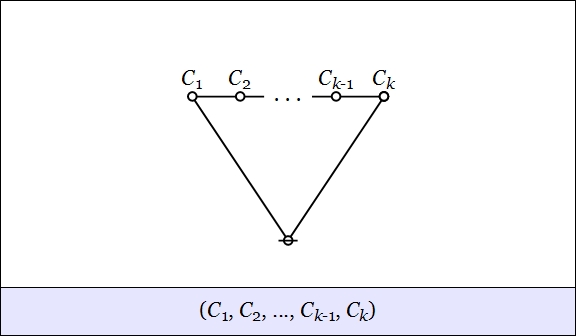

Lobe Connective

Lobe Connective

PNG

Logical Interpretations of Cactus Structures • En Ex

\text{Logical Interpretations of Cactus Structures}
Logical Interpretations of Cactus Structures

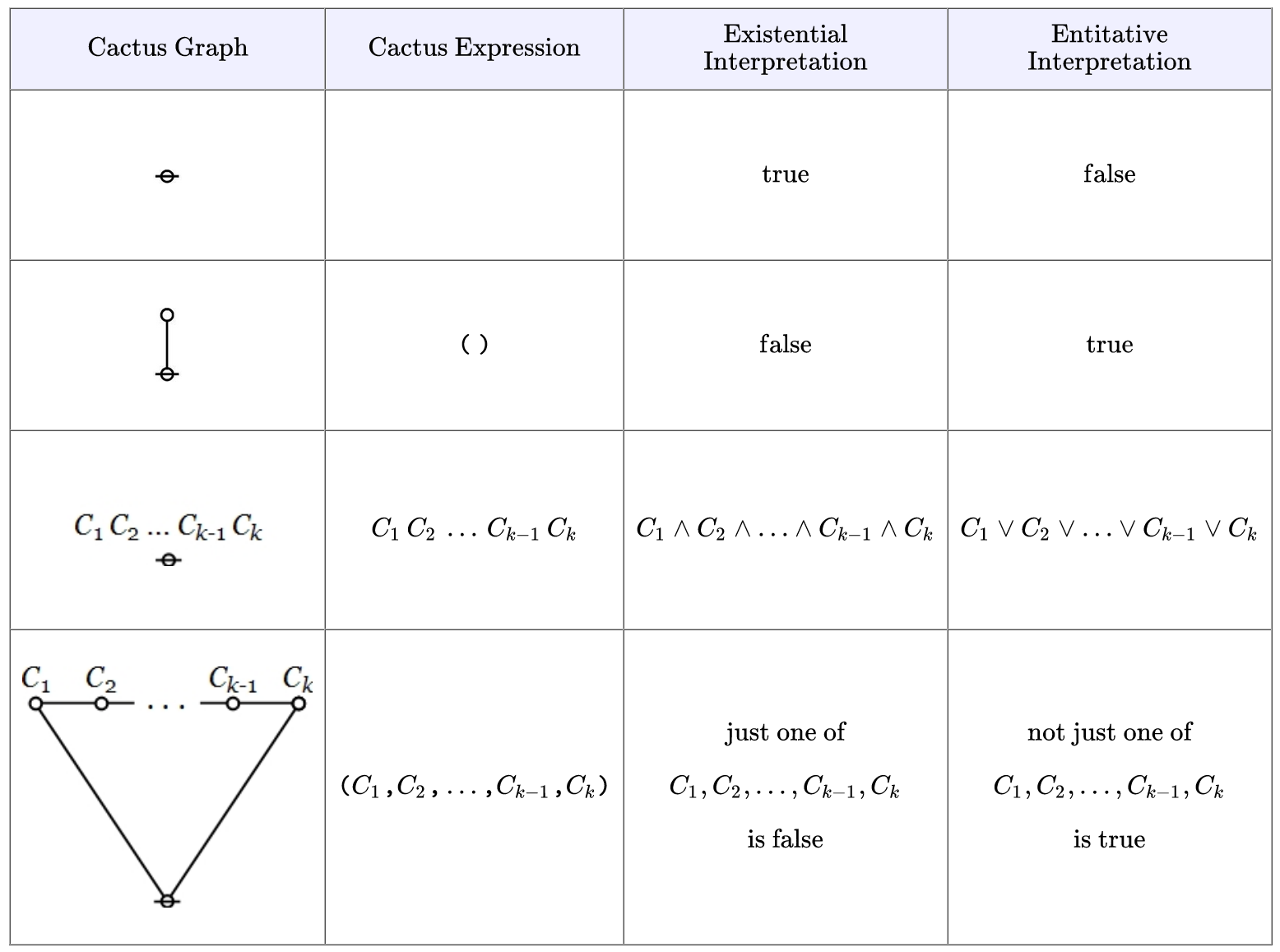

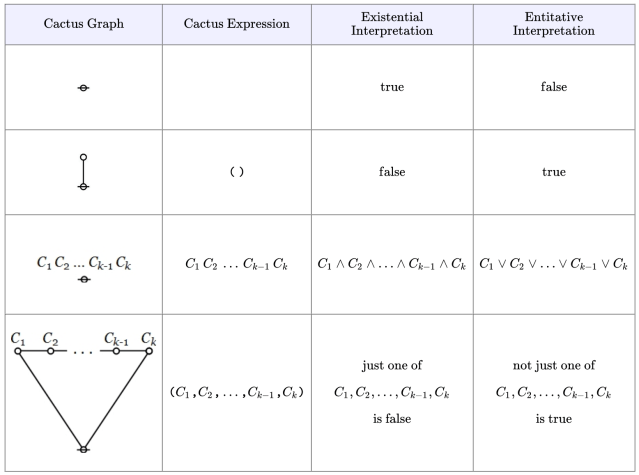

Logical Interpretations of Cactus Structures • Ex En

\text{Logical Interpretations of Cactus Structures}
Logical Interpretations of Cactus Structures

HTML + LaTeX + JPG

Logical Interpretations of Cactus Structures • En Ex

Logical Interpretations of Cactus Structures • Ex En

\text{Logical Interpretations of Cactus Structures}
\text{Graph} \text{Expression} \begin{matrix}  \text{Existential} \\ \text{Interpretation}  \end{matrix} \begin{matrix}  \text{Entitative} \\ \text{Interpretation}  \end{matrix}

“ ”
~ \mathrm{true} \mathrm{false}

( )

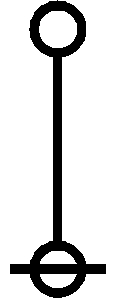

\texttt{(} ~ \texttt{)} \mathrm{false} \mathrm{true}

node connective
C_1 \ldots C_k C_1 \land \ldots \land C_k C_1 \lor \ldots \lor C_k

lobe connective
\texttt{(} C_1 \texttt{,} \ldots \texttt{,} C_k \texttt{)} \begin{matrix}  \text{just one of}  \\[6px]  C_1, \ldots, C_k  \\[6px]  \text{is false}  \end{matrix} \begin{matrix}  \text{not just one of}  \\[6px]  C_1, \ldots,  C_k  \\[6px]  \text{is true}  \end{matrix}
