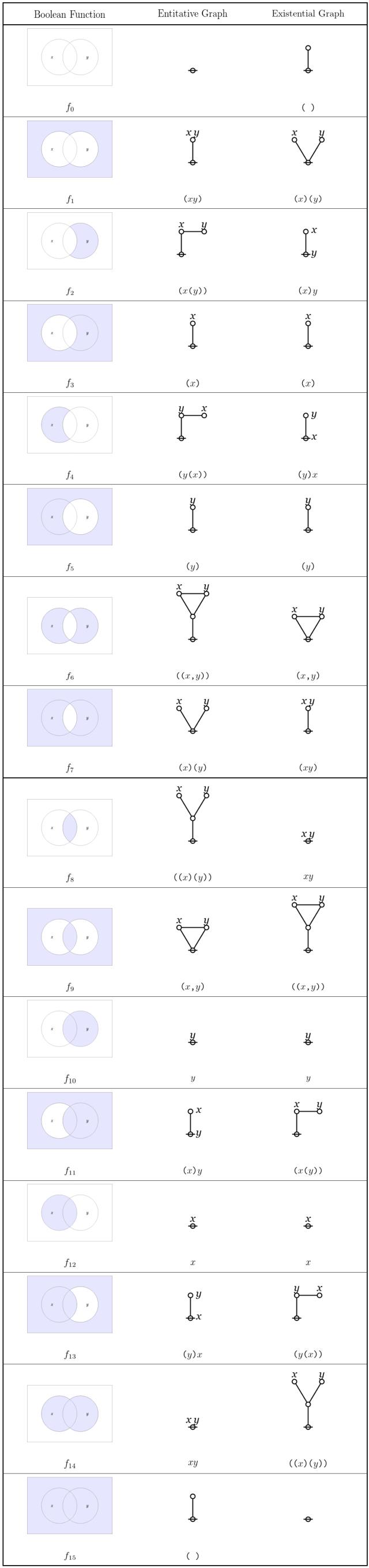

Boolean Functions and Logical Graphs on Two Variables

Index Order

PNG

$\text{Boolean Functions and Logical Graphs on Two Variables}$

HTML + JPG + LaTeX

Boolean Functions and Logical Graphs on Two Variables
$\text{Boolean Function}$	$\text{Entitative Graph}$	$\text{Existential Graph}$

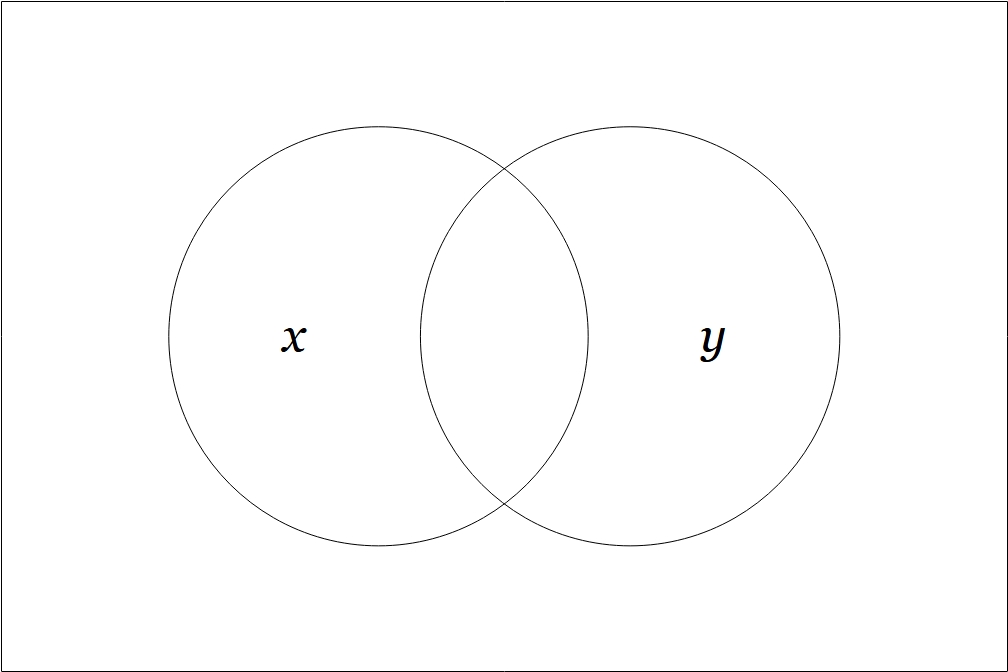

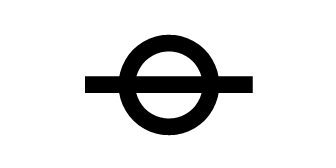

$f_{0}$	$\texttt{ }$	$\texttt{( )}$

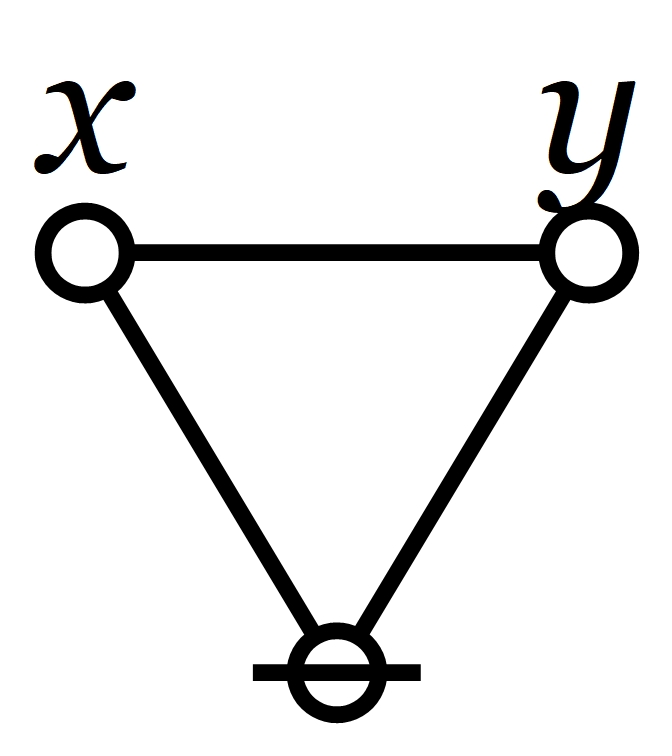

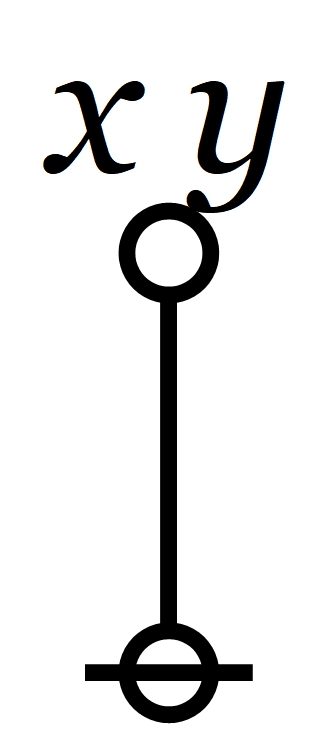

$f_{1}$	$\texttt{(} x y \texttt{)}$	$\texttt{(} x \texttt{)(} y \texttt{)}$

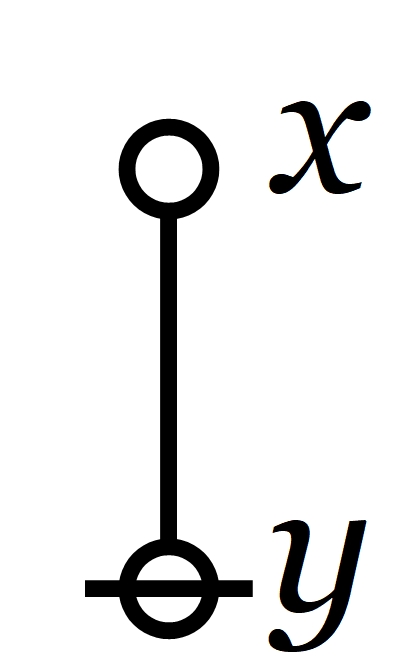

$f_{2}$	$\texttt{(} x \texttt{(} y \texttt{))}$	$\texttt{(} x \texttt{)} y$

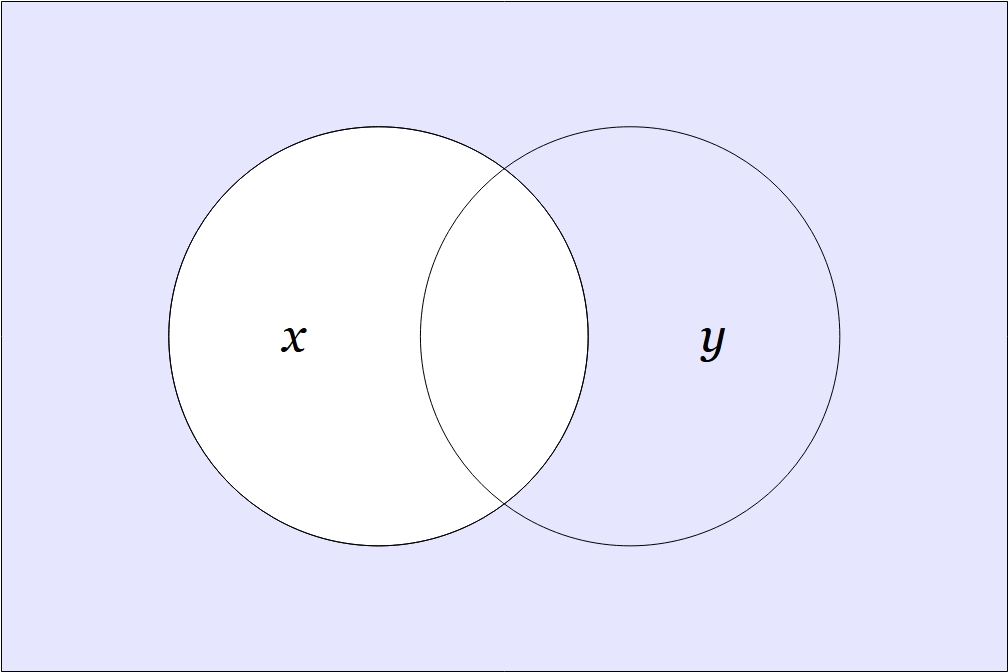

$f_{3}$	$\texttt{(} x \texttt{)}$	$\texttt{(} x \texttt{)}$

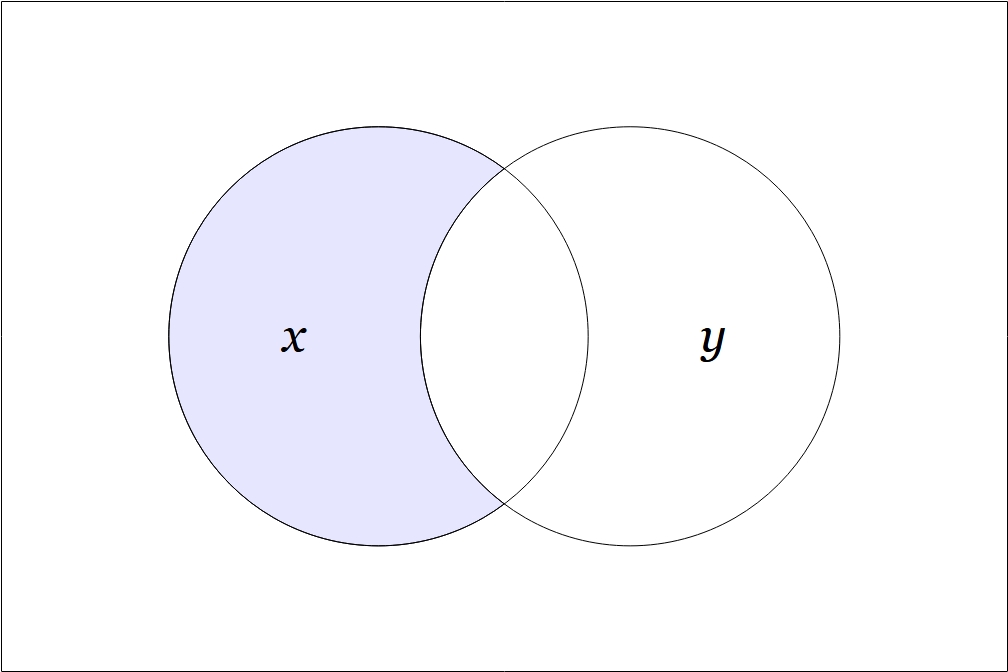

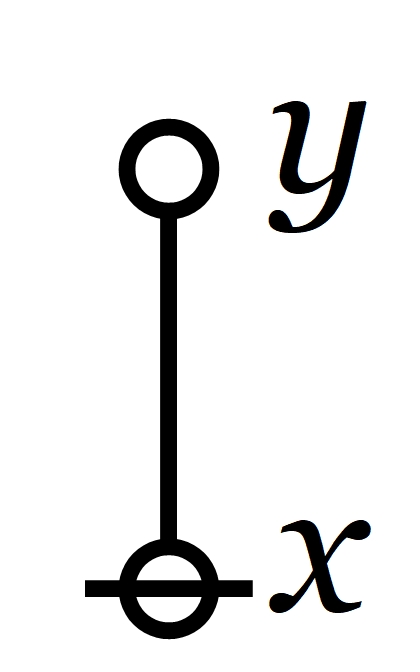

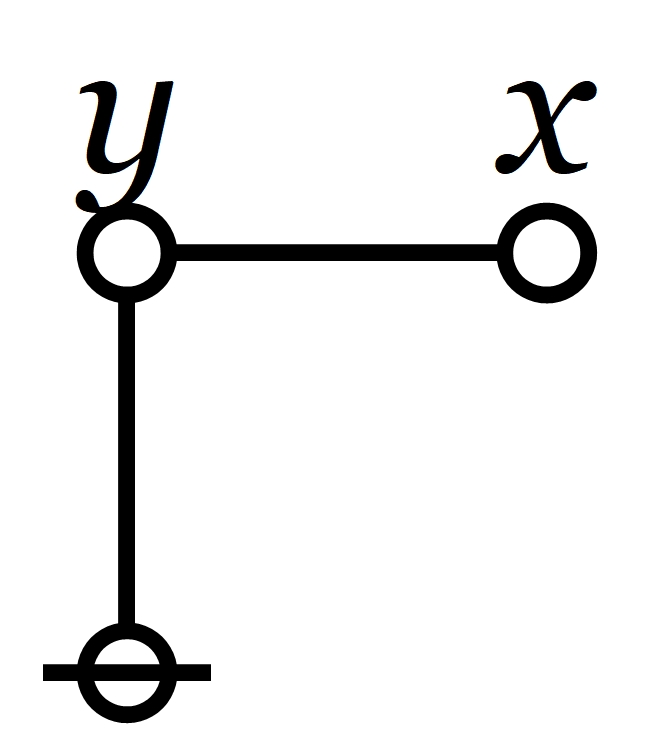

$f_{4}$	$\texttt{(} y \texttt{(} x \texttt{))}$	$\texttt{(} y \texttt{)} x$

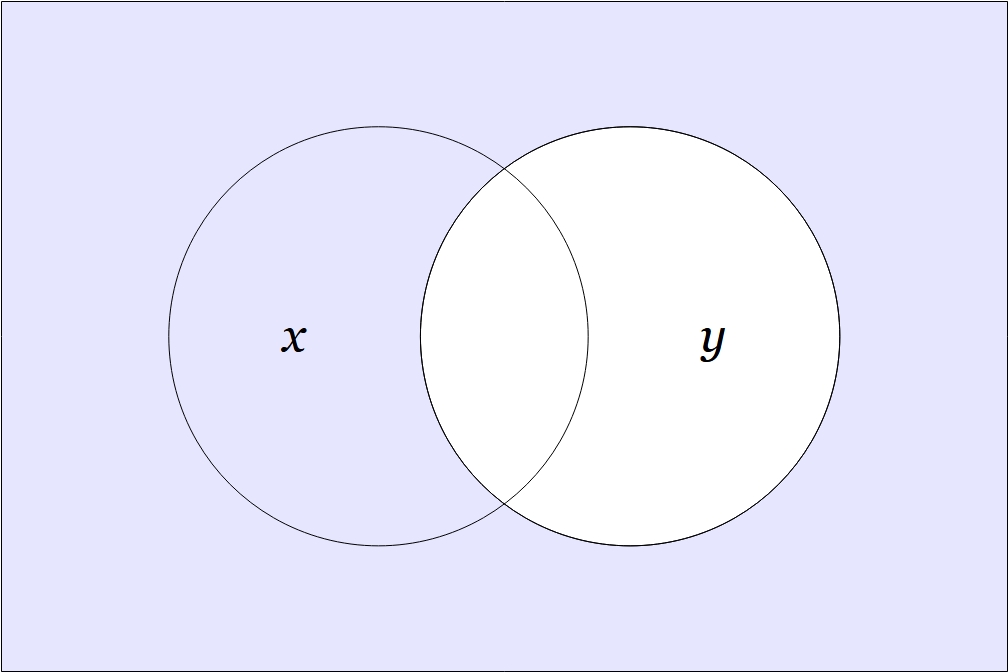

$f_{5}$	$\texttt{(} y \texttt{)}$	$\texttt{(} y \texttt{)}$

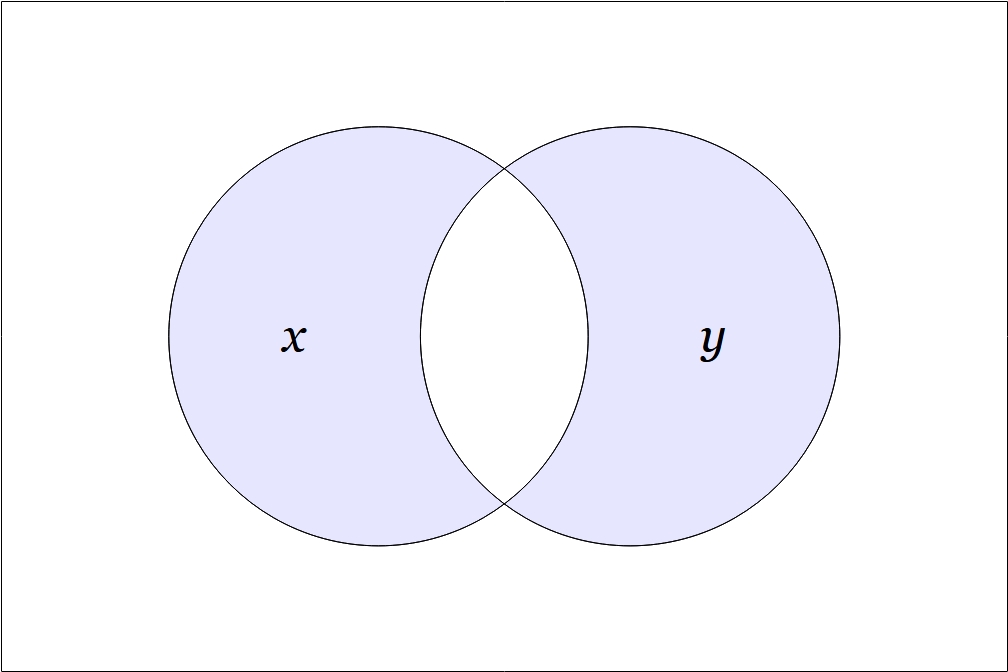

$f_{6}$	$\texttt{((} x \texttt{,} y \texttt{))}$	$\texttt{(} x \texttt{,} y \texttt{)}$

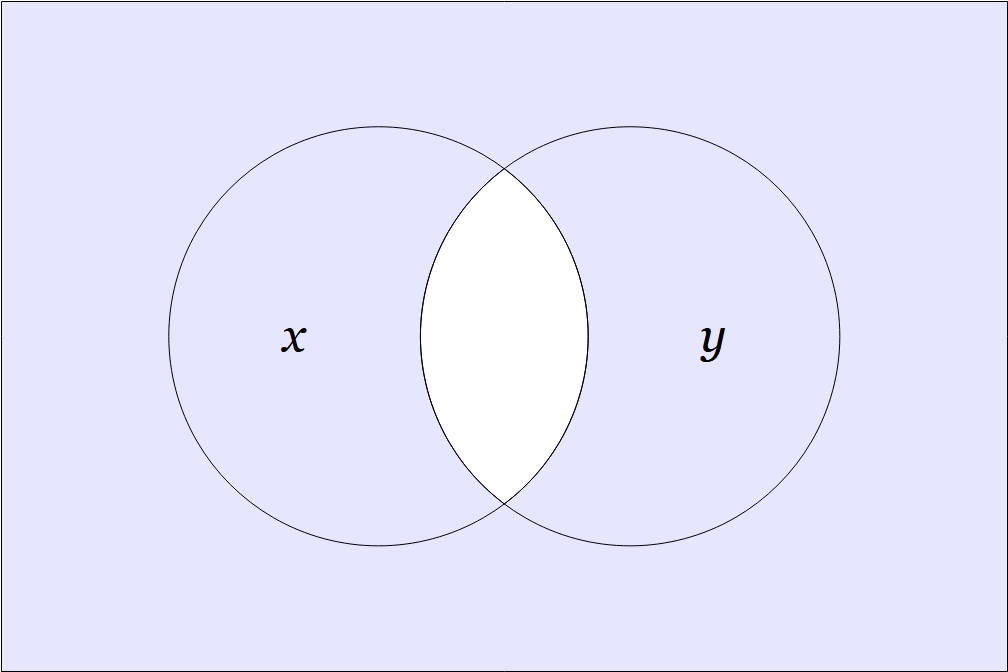

$f_{7}$	$\texttt{(} x \texttt{)(} y \texttt{)}$	$\texttt{(} x y \texttt{)}$

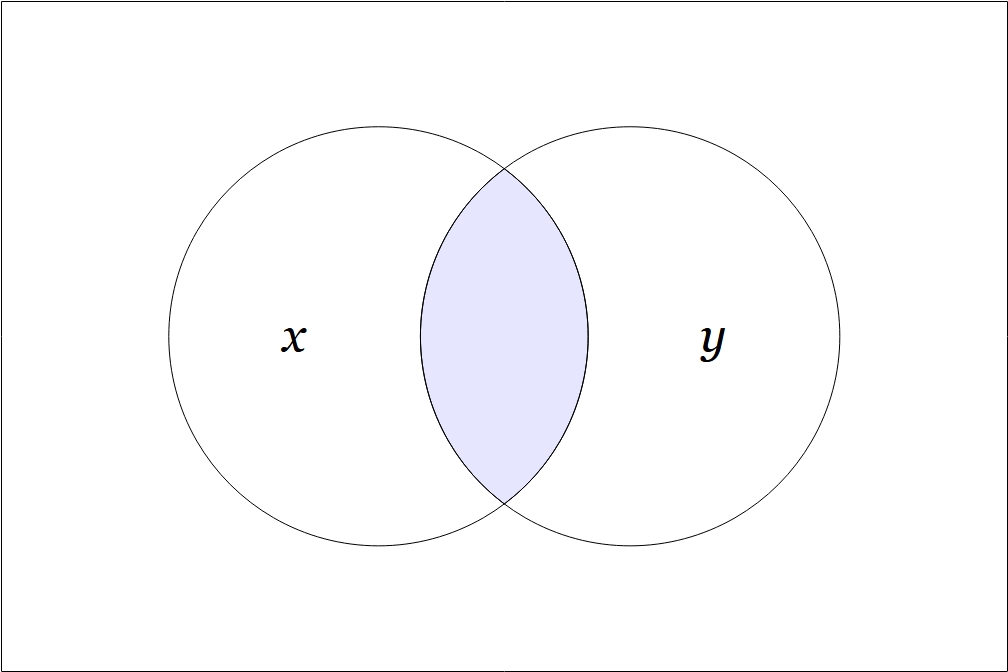

$f_{8}$	$\texttt{((} x \texttt{)(} y \texttt{))}$	$x y$

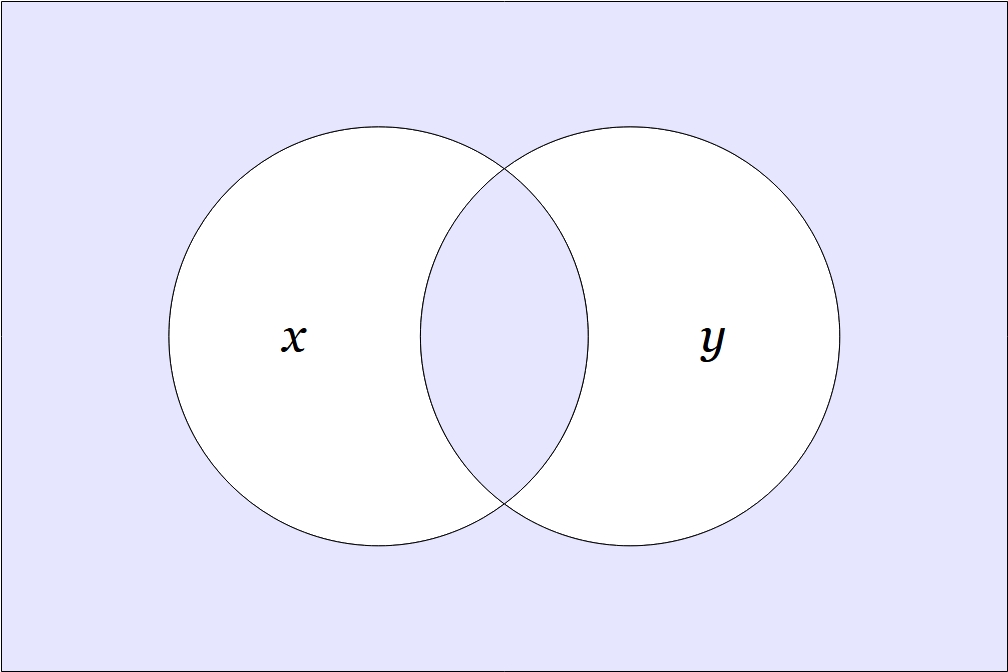

$f_{9}$	$\texttt{(} x \texttt{,} y \texttt{)}$	$\texttt{((} x \texttt{,} y \texttt{))}$

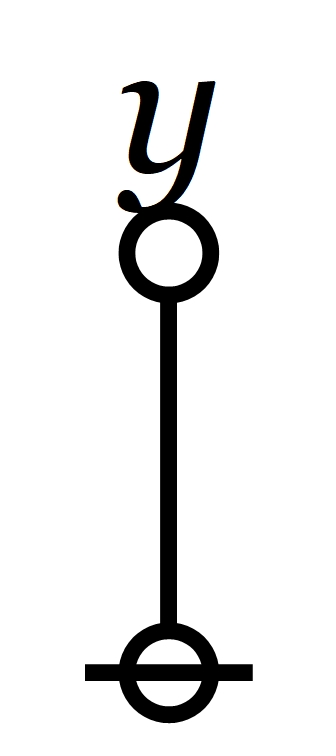

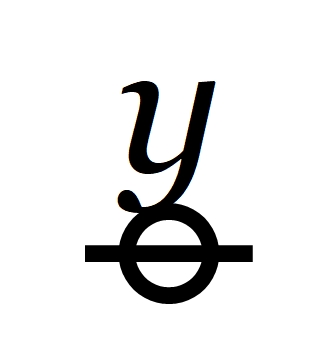

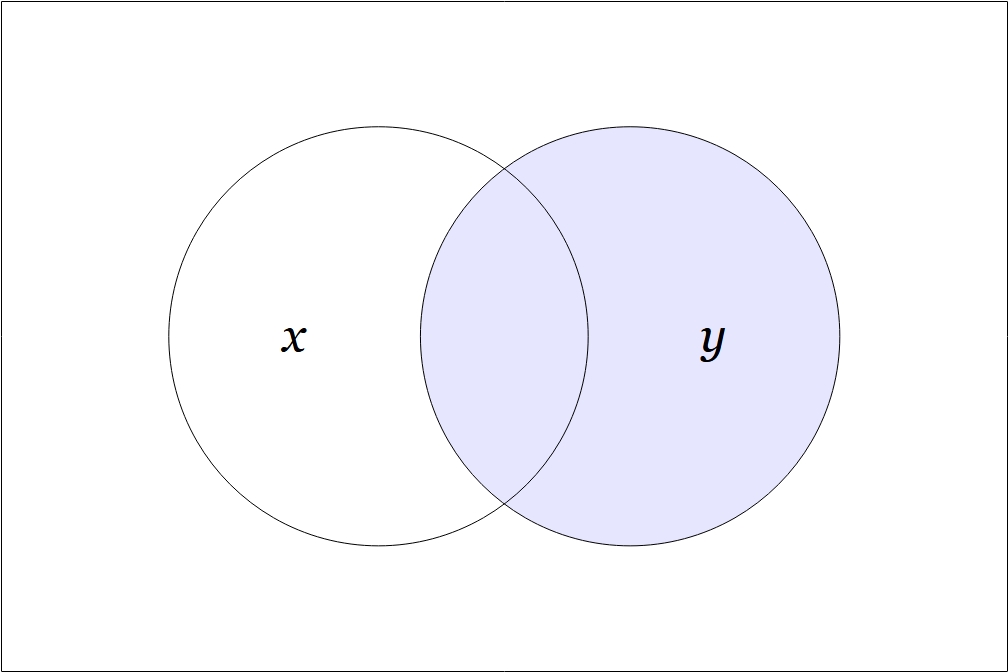

$f_{10}$	$y$	$y$

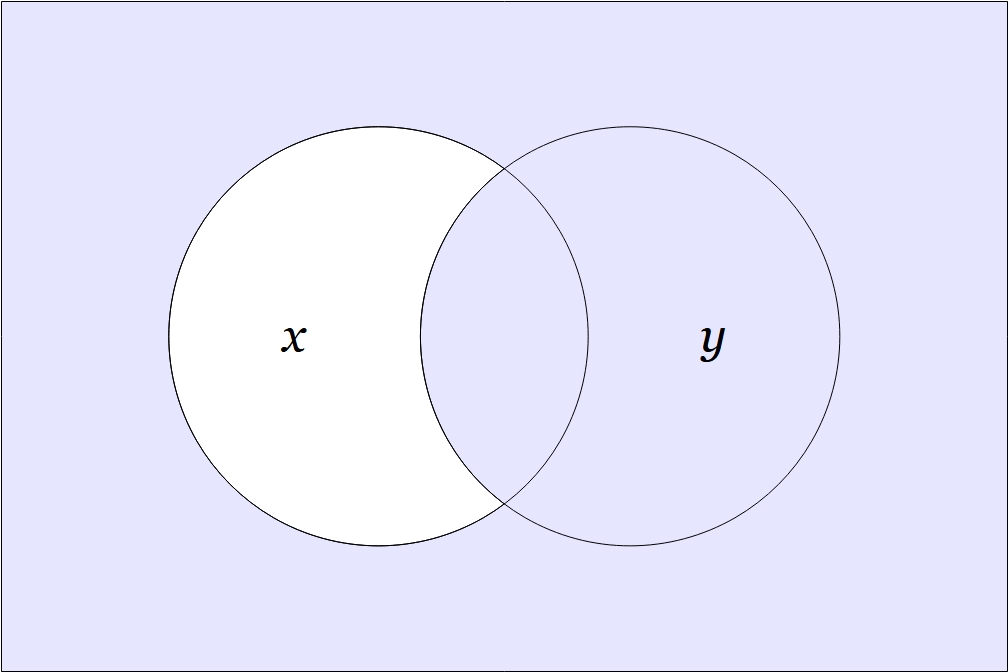

$f_{11}$	$\texttt{(} x \texttt{)} y$	$\texttt{(} x \texttt{(} y \texttt{))}$

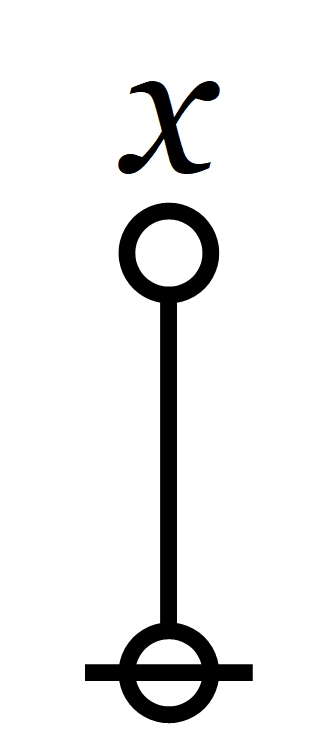

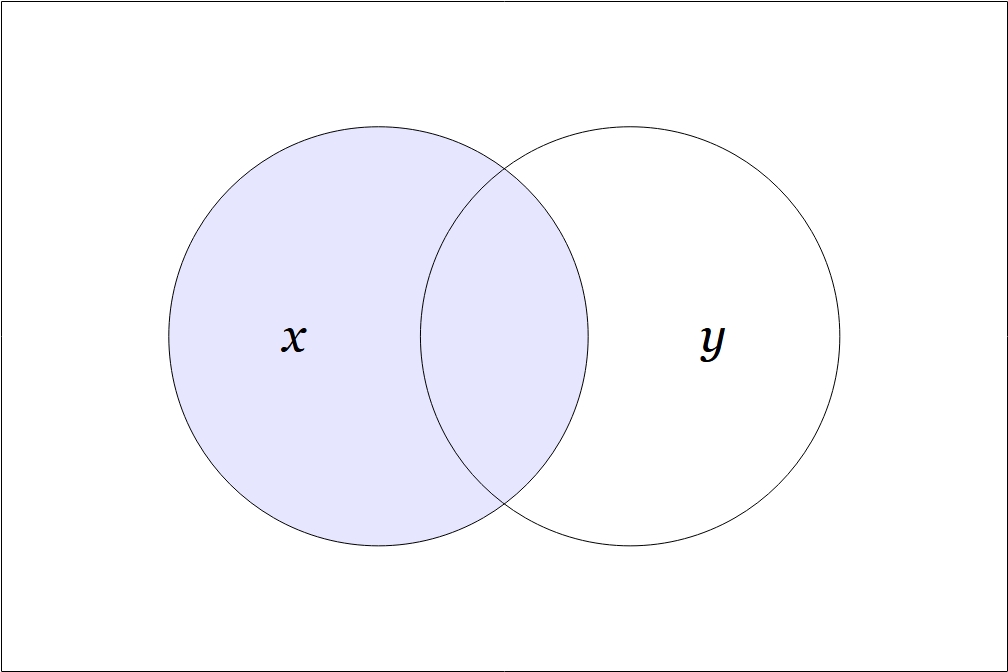

$f_{12}$	$x$	$x$

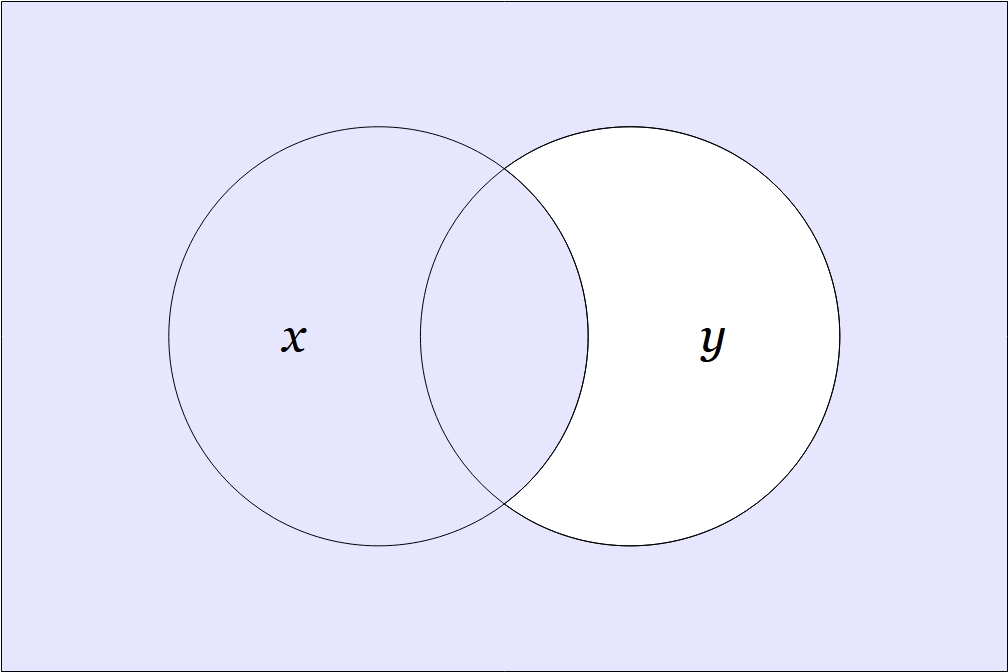

$f_{13}$	$\texttt{(} y \texttt{)} x$	$\texttt{(} y \texttt{(} x \texttt{))}$

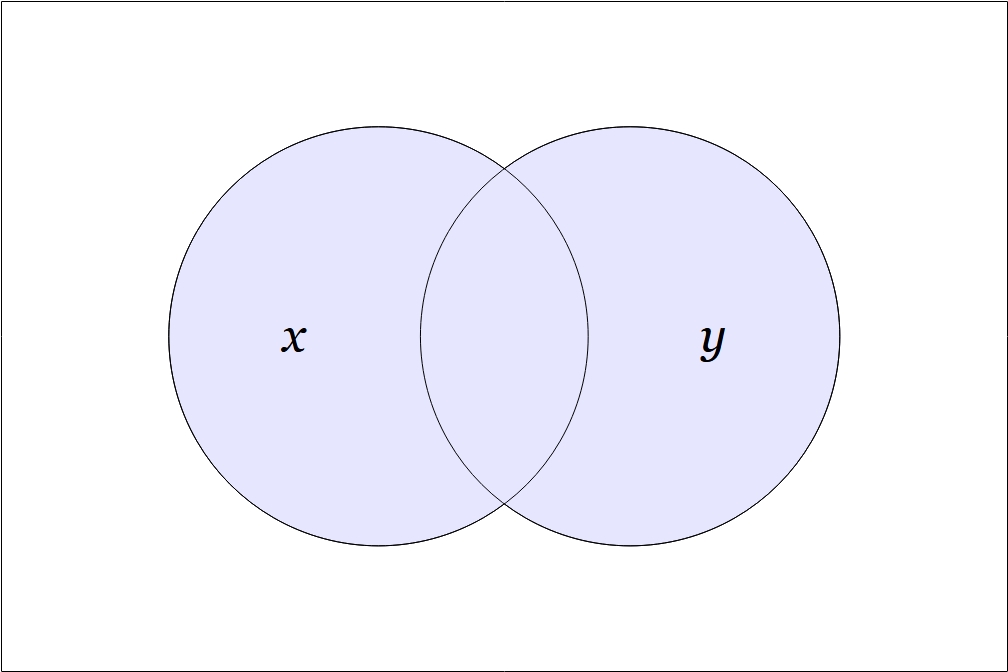

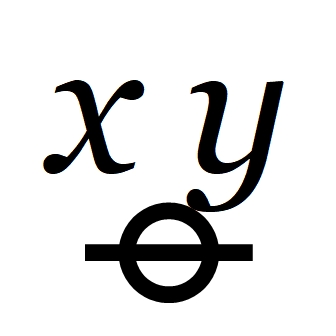

$f_{14}$	$x y$	$\texttt{((} x \texttt{)(} y \texttt{))}$

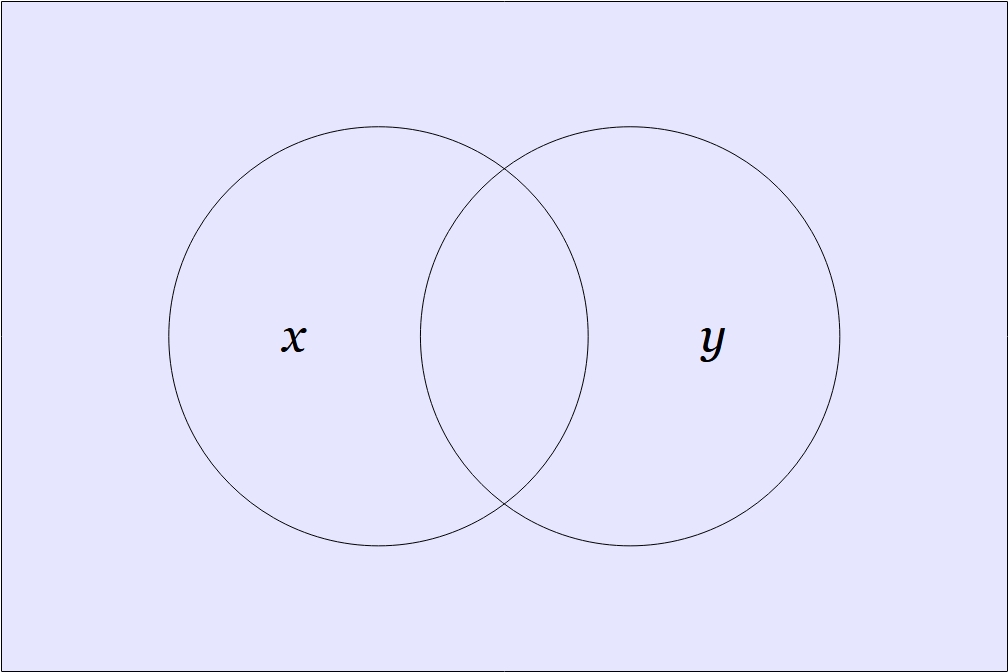

$f_{15}$	$\texttt{( )}$	$\texttt{ }$

Orbit Order

PNG

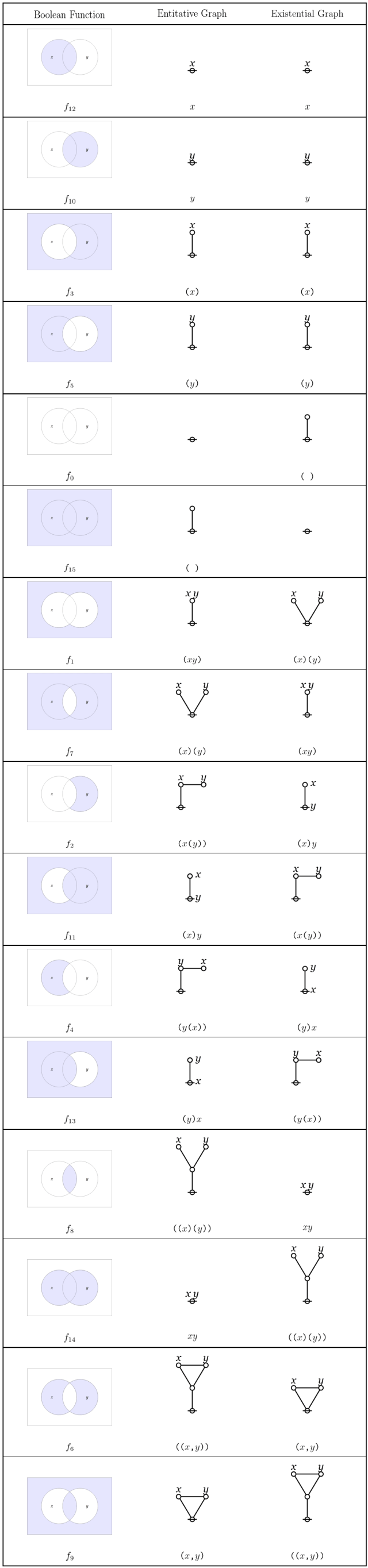

$\text{Boolean Functions and Logical Graphs on Two Variables} \stackrel{_\bullet}{} \text{Orbit Order}$

HTML + JPG + LaTeX

Boolean Functions and Logical Graphs on Two Variables • Orbit Order
$\text{Boolean Function}$	$\text{Entitative Graph}$	$\text{Existential Graph}$

$f_{12}$	$x$	$x$

$f_{10}$	$y$	$y$

$f_{3}$	$\texttt{(} x \texttt{)}$	$\texttt{(} x \texttt{)}$

$f_{5}$	$\texttt{(} y \texttt{)}$	$\texttt{(} y \texttt{)}$

$f_{0}$	$\texttt{ }$	$\texttt{( )}$

$f_{15}$	$\texttt{( )}$	$\texttt{ }$

$f_{1}$	$\texttt{(} x y \texttt{)}$	$\texttt{(} x \texttt{)(} y \texttt{)}$

$f_{7}$	$\texttt{(} x \texttt{)(} y \texttt{)}$	$\texttt{(} x y \texttt{)}$

$f_{2}$	$\texttt{(} x \texttt{(} y \texttt{))}$	$\texttt{(} x \texttt{)} y$

$f_{11}$	$\texttt{(} x \texttt{)} y$	$\texttt{(} x \texttt{(} y \texttt{))}$

$f_{4}$	$\texttt{(} y \texttt{(} x \texttt{))}$	$\texttt{(} y \texttt{)} x$

$f_{13}$	$\texttt{(} y \texttt{)} x$	$\texttt{(} y \texttt{(} x \texttt{))}$

$f_{8}$	$\texttt{((} x \texttt{)(} y \texttt{))}$	$x y$

$f_{14}$	$x y$	$\texttt{((} x \texttt{)(} y \texttt{))}$

$f_{6}$	$\texttt{((} x \texttt{,} y \texttt{))}$	$\texttt{(} x \texttt{,} y \texttt{)}$

$f_{9}$	$\texttt{(} x \texttt{,} y \texttt{)}$	$\texttt{((} x \texttt{,} y \texttt{))}$
