Peirce Duality • Orbit Details
Self-Dual Logical Graphs
Constants and Amphecks

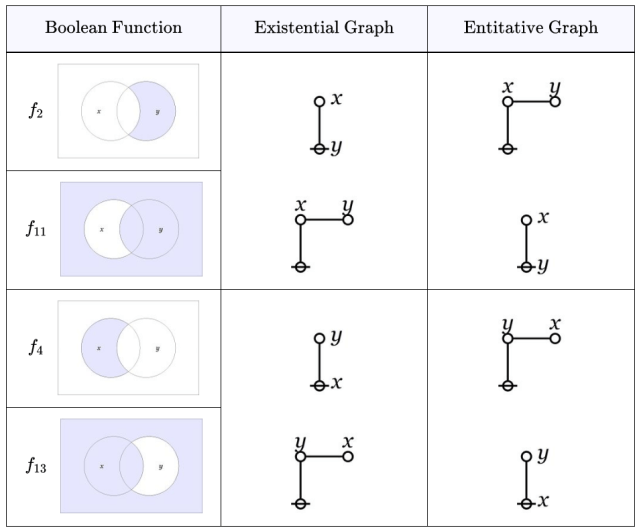

Subtractions and Implications

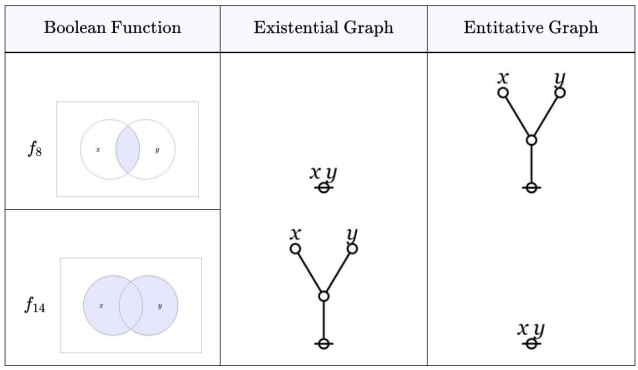

Conjunction and Disjunction

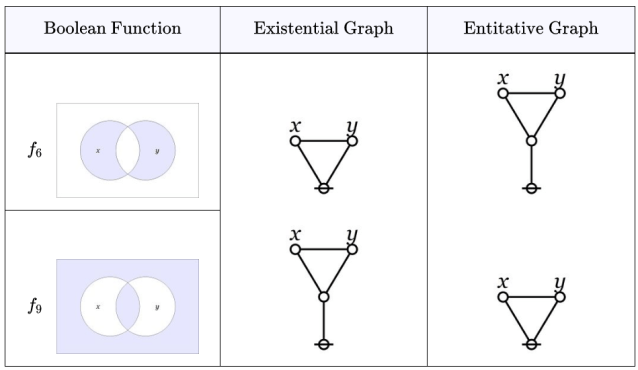

Difference and Equality
Peirce Duality • Truth Tables

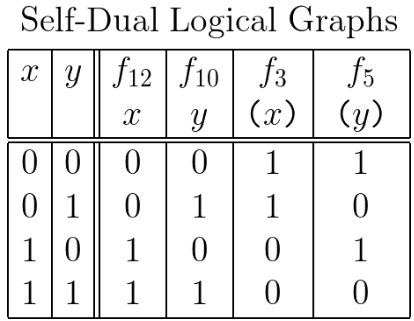

Self-Dual Logical Graphs
LaTeX
![\begin{array}{|c|c||c|c|c|c|} \multicolumn{6}{c}{\text{Self-Dual Logical Graphs}} \\[2pt] \hline x & y & f_{12} & f_{10} & f_{3} & f_{5} \\ ~ & ~ & x & y & \texttt{(}x\texttt{)} & \texttt{(}y\texttt{)} \\ \hline\hline 0 & 0 & 0 & 0 & 1 & 1 \\ 0 & 1 & 0 & 1 & 1 & 0 \\ 1 & 0 & 1 & 0 & 0 & 1 \\ 1 & 1 & 1 & 1 & 0 & 0 \\ \hline \end{array}](https://s0.wp.com/latex.php?latex=%5Cbegin%7Barray%7D%7B%7Cc%7Cc%7C%7Cc%7Cc%7Cc%7Cc%7C%7D++%5Cmulticolumn%7B6%7D%7Bc%7D%7B%5Ctext%7BSelf-Dual+Logical+Graphs%7D%7D+%5C%5C%5B2pt%5D++%5Chline++x+%26+y+%26+f_%7B12%7D+%26+f_%7B10%7D+%26+f_%7B3%7D+++++++++++++++++%26+f_%7B5%7D+%5C%5C++%7E+%26+%7E+%26+x++++++%26+y++++++%26+%5Ctexttt%7B%28%7Dx%5Ctexttt%7B%29%7D+%26+%5Ctexttt%7B%28%7Dy%5Ctexttt%7B%29%7D+%5C%5C++%5Chline%5Chline++0+%26+0+%26+0+%26+0+%26+1+%26+1+%5C%5C++0+%26+1+%26+0+%26+1+%26+1+%26+0+%5C%5C++1+%26+0+%26+1+%26+0+%26+0+%26+1+%5C%5C++1+%26+1+%26+1+%26+1+%26+0+%26+0+%5C%5C++%5Chline++%5Cend%7Barray%7D&bg=ffffff&fg=000000&s=1&c=20201002)
PNG

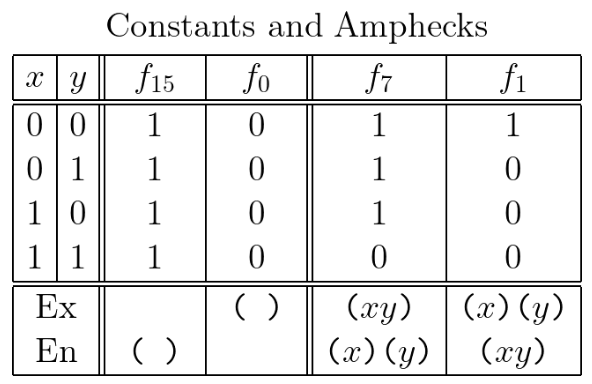

Constants and Amphecks
LaTeX
![\begin{array}{|c|c||c|c||c|c|} \multicolumn{6}{c}{\text{Constants and Amphecks}} \\[2pt] \hline x & y & f_{15} & f_{0} & f_{7} & f_{1} \\ \hline\hline 0 & 0 & 1 & 0 & 1 & 1 \\ 0 & 1 & 1 & 0 & 1 & 0 \\ 1 & 0 & 1 & 0 & 1 & 0 \\ 1 & 1 & 1 & 0 & 0 & 0 \\ \hline\hline \multicolumn{2}{|c||}{\text{Ex}} & ~ & ~ \texttt{( )} ~ & \texttt{(} xy \texttt{)} & \texttt{(} x \texttt{)(} y \texttt{)} \\ \multicolumn{2}{|c||}{\text{En}} & ~ \texttt{( )} ~ & ~ & \texttt{(} x \texttt{)(} y \texttt{)} & \texttt{(} xy \texttt{)} \\ \hline \end{array}](https://s0.wp.com/latex.php?latex=%5Cbegin%7Barray%7D%7B%7Cc%7Cc%7C%7Cc%7Cc%7C%7Cc%7Cc%7C%7D++%5Cmulticolumn%7B6%7D%7Bc%7D%7B%5Ctext%7BConstants+and+Amphecks%7D%7D+%5C%5C%5B2pt%5D++%5Chline++x+%26+y+%26+f_%7B15%7D+%26+f_%7B0%7D+%26+f_%7B7%7D+%26+f_%7B1%7D+%5C%5C++%5Chline%5Chline++0+%26+0+%26+1+%26+0+%26+1+%26+1+%5C%5C++0+%26+1+%26+1+%26+0+%26+1+%26+0+%5C%5C++1+%26+0+%26+1+%26+0+%26+1+%26+0+%5C%5C++1+%26+1+%26+1+%26+0+%26+0+%26+0+%5C%5C++%5Chline%5Chline++%5Cmulticolumn%7B2%7D%7B%7Cc%7C%7C%7D%7B%5Ctext%7BEx%7D%7D+++%26+%7E+%26+%7E+%5Ctexttt%7B%28+%29%7D+%7E+++%26+%5Ctexttt%7B%28%7D+xy+%5Ctexttt%7B%29%7D+%26+%5Ctexttt%7B%28%7D+x+%5Ctexttt%7B%29%28%7D+y+%5Ctexttt%7B%29%7D+%5C%5C++%5Cmulticolumn%7B2%7D%7B%7Cc%7C%7C%7D%7B%5Ctext%7BEn%7D%7D+++%26+%7E+%5Ctexttt%7B%28+%29%7D+%7E+%26+%7E+++%26+%5Ctexttt%7B%28%7D+x+%5Ctexttt%7B%29%28%7D+y+%5Ctexttt%7B%29%7D+%26+%5Ctexttt%7B%28%7D+xy+%5Ctexttt%7B%29%7D+%5C%5C++%5Chline++%5Cend%7Barray%7D&bg=ffffff&fg=000000&s=1&c=20201002)
PNG

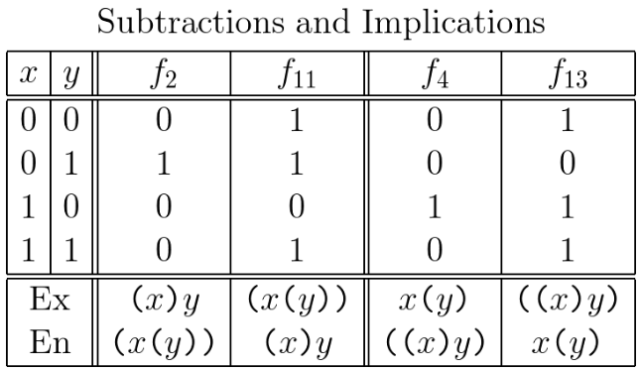

Subtractions and Implications
LaTeX
![\begin{array}{|c|c||c|c||c|c|} \multicolumn{6}{c}{\text{Subtractions and Implications}} \\[2pt] \hline x & y & f_{2} & f_{11} & f_{4} & f_{13} \\ \hline\hline 0 & 0 & 0 & 1 & 0 & 1 \\ 0 & 1 & 1 & 1 & 0 & 0 \\ 1 & 0 & 0 & 0 & 1 & 1 \\ 1 & 1 & 0 & 1 & 0 & 1 \\ \hline\hline \multicolumn{2}{|c||}{\text{Ex}} & ~ \texttt{(} x \texttt{)} y ~ & \texttt{(} x \texttt{(} y \texttt{))} & ~ x \texttt{(} y \texttt{)} ~ & \texttt{((} x \texttt{)} y \texttt{)} \\ \multicolumn{2}{|c||}{\text{En}} & \texttt{(} x \texttt{(} y \texttt{))} & ~ \texttt{(} x \texttt{)} y ~ & \texttt{((} x \texttt{)} y \texttt{)} & ~ x \texttt{(} y \texttt{)} ~ \\ \hline \end{array}](https://s0.wp.com/latex.php?latex=%5Cbegin%7Barray%7D%7B%7Cc%7Cc%7C%7Cc%7Cc%7C%7Cc%7Cc%7C%7D++%5Cmulticolumn%7B6%7D%7Bc%7D%7B%5Ctext%7BSubtractions+and+Implications%7D%7D+%5C%5C%5B2pt%5D++%5Chline++x+%26+y+%26+f_%7B2%7D+%26+f_%7B11%7D+%26+f_%7B4%7D+%26+f_%7B13%7D+%5C%5C++%5Chline%5Chline++0+%26+0+%26+0+%26+1+%26+0+%26+1+%5C%5C++0+%26+1+%26+1+%26+1+%26+0+%26+0+%5C%5C++1+%26+0+%26+0+%26+0+%26+1+%26+1+%5C%5C++1+%26+1+%26+0+%26+1+%26+0+%26+1+%5C%5C++%5Chline%5Chline++%5Cmulticolumn%7B2%7D%7B%7Cc%7C%7C%7D%7B%5Ctext%7BEx%7D%7D+++%26+%7E+%5Ctexttt%7B%28%7D+x+%5Ctexttt%7B%29%7D+y+%7E+%26+%5Ctexttt%7B%28%7D+x+%5Ctexttt%7B%28%7D+y+%5Ctexttt%7B%29%29%7D+++%26+%7E+x+%5Ctexttt%7B%28%7D+y+%5Ctexttt%7B%29%7D+%7E+%26+%5Ctexttt%7B%28%28%7D+x+%5Ctexttt%7B%29%7D+y+%5Ctexttt%7B%29%7D+%5C%5C++%5Cmulticolumn%7B2%7D%7B%7Cc%7C%7C%7D%7B%5Ctext%7BEn%7D%7D+++%26+%5Ctexttt%7B%28%7D+x+%5Ctexttt%7B%28%7D+y+%5Ctexttt%7B%29%29%7D+%26+%7E+%5Ctexttt%7B%28%7D+x+%5Ctexttt%7B%29%7D+y+%7E+++%26+%5Ctexttt%7B%28%28%7D+x+%5Ctexttt%7B%29%7D+y+%5Ctexttt%7B%29%7D+%26+%7E+x+%5Ctexttt%7B%28%7D+y+%5Ctexttt%7B%29%7D+%7E+%5C%5C++%5Chline++%5Cend%7Barray%7D&bg=ffffff&fg=000000&s=1&c=20201002)
PNG
